Windows

Prerequisites

You will need the following software installed on your system:

Installation

Choose a location on your machine with sufficient storage for ALPR recognitions (at least 50GB recommended), create a new directory, and run the installation script.

1. Open PowerShell with administrator priveleges and create a new directory where you would like to install:

mkdir ALPR_Database
cd ALPR_Database

2. Allow permission to run the script:

Set-ExecutionPolicy RemoteSigned

3. Run the installation script:

irm https://raw.githubusercontent.com/algertc/ALPR-Database/main/install.ps1 | iex

The script will automatically:

• Set up the necessary directories
• Download the Docker Compose configuration
• Start the database containers

Copy Your API Key

1. Access the app's web interface at http://localhost:3000 (or your server's IP address)
2. Click the gear icon in the bottom left corner and navigate to the security section
3. Copy your API key from the bottom of the page

Configure Blue Iris

We will now configure an alert action for the camera in Blue Iris to send the response from the AI to the database.

1. Open the settings for your ALPR camera in Blue Iris
2. Navigate to Alert tab and open your alert actions with the On Alert button at the bottom of the window
3. Click on the + button to add a new alert and select type MQTT/Web Request

• Configure the alert with the following payload, replacing [docker-ip] with the IP address of your docker machine:

[docker-ip]:3000/api/plate-reads

{ "ai_dump":&JSON, "Image":"&ALERT_JPEG", "camera":"&CAM", "ALERT_PATH": "&ALERT_PATH", "ALERT_CLIP": "&ALERT_CLIP", "timestamp":"&ALERT_TIME" }

x-api-key: YOUR_API_KEY

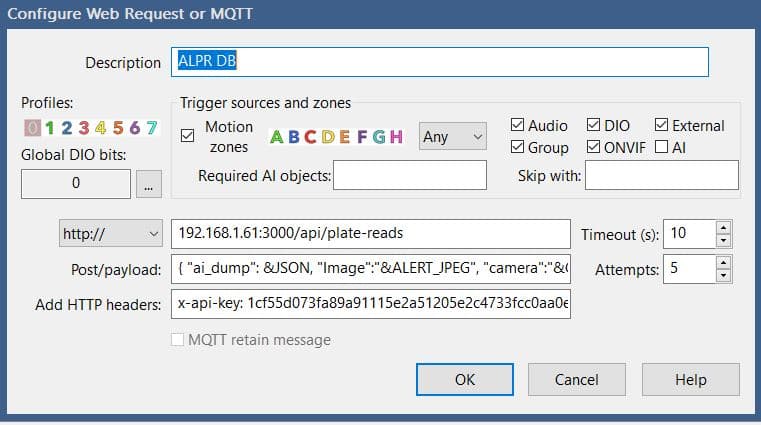

look like this:

Done!

You're now collecting and storing your ALPR data. New detections will appear in the live feed.
